Hospital Lab Grade Deionized Water Machine Water Deionizer Purification Equipmnet

  • CCH-G500

  • 220V/50Hz

  • 500L/h

  • 10-20L/min

  • 1000*660*1500mm

  • <=15μs/cm

  • 18.2MΩ.cm

Availability:
Quantity:

Hospital Lab Grade Deionized Water Machine Water Deionizer Purification Equipmnet


Hospital ultra pure water system, according to the industrial standard requirements of 《The Hospital Disinfection Supply Center 》,combined with the technical advantages in medical water treatment, launch overall solutions and equipment for the water supply system requiring classified water supply in the disinfection supply center. This system uses tap water for direct connection to realize the unified supply of various departments, and is safely connected with various brands of automatic disinfection machines, cleaning machines and sterilization equipment.


Machine Performance

1.Meet puried water requirements industrial standard of the disinfection supply center.

2.Online display of equipment running status and parameters, online monitoring and digital display of water quality. It can control and analysis the running status at any time.

3.The intelligent balance system ensures the stability and safety of operation.

4.The main components are well-know imported brand accessories to make the system operate more stably and ensure high puried water quality.

5.The equipment can be directly connected with disinfection and cleaning equipment.

6.It can be designed according to customer requirements and site condition.


Application

purified water for hospital disinfection room, hospital pharmacy dispensing, and purified water for oral cavity, gastroscope, endoscope room cleaning.


Machine Advantages

1. The equipment has the functions of automatic washing, automatic water making, liquid level protection, high and low pressure alarm, overheating protection, etc.

2. High pressure stainless steel pipe is used for main engine pipe to reduce water leakage rate

Equipment low pressure, low liquid level, water quality exceeding the standard, thermal overload, water leakage and other sound and light alarm functions.

3. It can realize on-line display of water conductivity, flow, pressure and other parameters.

4. The pretreatment system has the function of automatic timing flushing and regeneration operation.

5. The equipment consists of pretreatment system, reverse osmosis system and constant pressure transmission ultraviolet sterilization system. It has fault alarm function and automatic disinfection function.

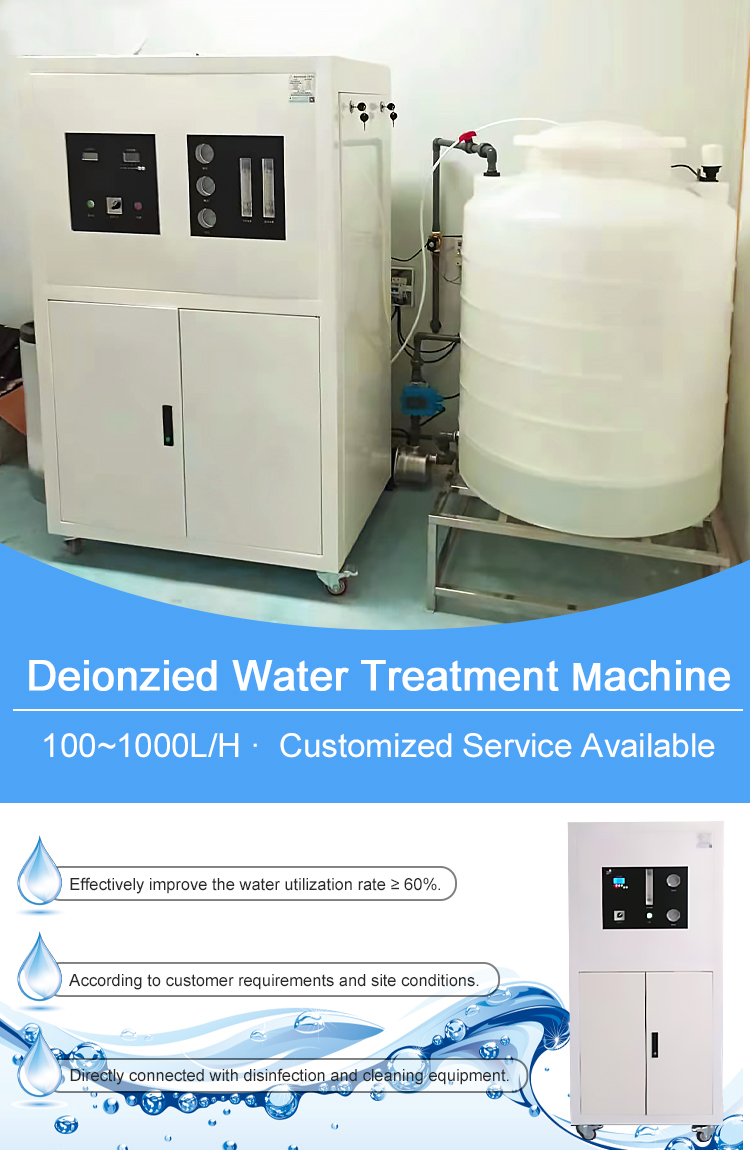

deionzied water2


Model

CCH-G100

CCH-G150

CCH-G200CCH-G300

CCH-G500

CCH-G1000

AC Requirement

220V/50Hz

Rated Power (KW)

0.18

0.22

1

2

4

5

Output Water Production

100L/h

150L/h

200L/h

300L/h

500L/h

1000L/h

Feed Water Requirement

Tap water,temperature 5~45℃,pressure0.1-0.4Mpa ; Conductivity < 400us / cm

Water Flow

10-20L/min

10-20L/min

10-20L/min

10-20L/min

10-20L/min

10-20L/min

Water Quality

Resistivity(25℃)

18.2MΩ.cm(online monitoring)

conductivity

<=15μs/cm

Heavy metal

<0.01 mg/l

Bacterial removal rate

>99.6%

Total organic carbon TOC

<10ppb

Microparticles

>0.2um<1pcs/ml

Dimension(L*W*H-mm)

600*450*1000

600*450*1000

600*450*1600

1000*660*1500

1000*660*1500

1000*660*1500


Application

Laboratory: Inspection and analysis, reagent preparation, microbial culture, plant cell culture, high performance liquid chromatography, mass spectrometry, container cleaning, etc.

Hospital: water for disinfection and supply room, dispensing water for pharmacy department, cleaning water for gastroscope and endoscope, laboratory, solution preparation room, hemodialysis room, operating room, clinical biochemical analyzer, PCR, blood gas analyzer, capillary electrophoresis instrument, etc.

Semiconductor Industry: monocrystalline silicon, semiconductor wafer cutting and manufacturing, semiconductor chips, conductive glass integrated circuits, liquid crystal displays, picture tubes, circuit boards, computer components, etc.

Petrochemical Industry: chemical reaction cooling, chemical agents, fertilizers and precision chemicals, cosmetics manufacturing, etc.

Boiler Water Treatment: oil refining, electric power, thermal power production, metallurgy, food, papermaking, etc.

纯水机架款应用
