Instructions for Using Moreshine Water Fuel Hydrogen Oxygen Welding Machine

Hydrogen oxygen flame water welding machine, also known as hydrogen oxygen welding machine, water welding machine, or hydrogen oxygen machine, is a machine that uses mature electrolysis water technology to decompose water into hydrogen and oxygen. After passing through safety devices such as wet flame arresters and electronic flame arresters, hydrogen and oxygen are connected to a dedicated hydrogen oxygen flame gun with built-in flame arresters. The igniter is used to ignite and form a hydrogen oxygen flame, which efficiently and quickly welds the workpiece. Simply put, a hydrogen oxygen flame water welding machine is a machine that uses water as the raw material to generate a hydrogen oxygen flame for welding.

Moreshine series hydrogen oxygen water welding machine/water fuel hydrogen oxygen machine is based on the combustion of hydrogen oxygen gas generated by DC electrolysis, and uses the high temperature of the hydrogen oxygen flame for flame welding. The characteristic of a Moreshine oxyhydrogen flame is that the combustion product is water vapor, and it does not produce black smoke during welding, which does not pollute the welding components. Compared to other carbon containing gases, oxyhydrogen flames are clean and environmentally friendly.

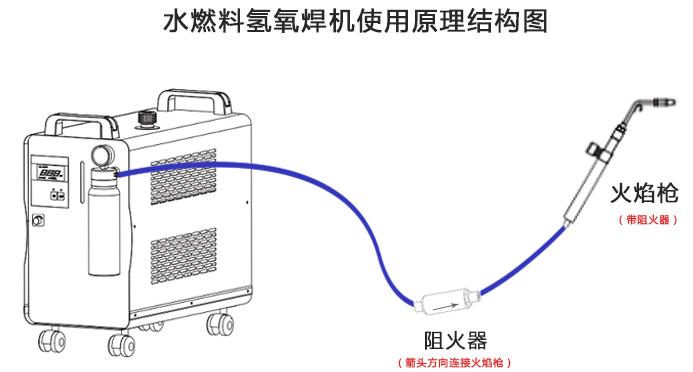

Schematic diagram of the usage principle and structure of Moreshine hydrogen oxygen water welding machine/water fuel hydrogen oxygen welding machine

①Advantages of hydrogen oxygen flame welding

●Hydrogen oxygen welding can replace high-risk oxygen cylinders, with no risk of explosion;

●The flame is concentrated and stable, with a temperature of up to 2800 degrees;

●When welding motor enameled wires, the need for paint welding is eliminated, making it more efficient and time-saving;

●The solder joints are firm and free of solder joints, with small deviations in heat affected area and resistance;

●The equipment generates gas upon startup, and the gas is produced, used, and not stored;

●The hydrogen oxygen mixture produced by electrolysis of water is non-toxic and harmless;

●After welding, only water is discharged and no black smoke or exhaust gas is generated.

②Maintenance and precautions of hydrogen oxygen flame water welding machine

1.Add water in a timely manner to avoid prolonged low water level operation. When the machine emits a beeping alarm sound, water should be added in a timely manner (medium and large machines have machines with automatic water addition). When adding water, follow the steps of turning off the fire, shutting down the machine, and releasing air. Then, open the water adding nut and add an appropriate amount of water to the hydrogen oxygen water welding machine's water replenishment cylinder. When adding, the water level can be observed, usually at half the height of the water level mark.

2.Change the electrolyte when the machine operates for approximately 500 hours. Before replacing the electrolyte, thoroughly clean the electrolytic cylinder.

3.Regularly clean the dust inside the machine. Open the side panel of the machine and use compressed air to clean the dust and other debris accumulated on the surface of the switch power supply, ensuring that the electronic components inside the machine operate at a reasonable temperature.
