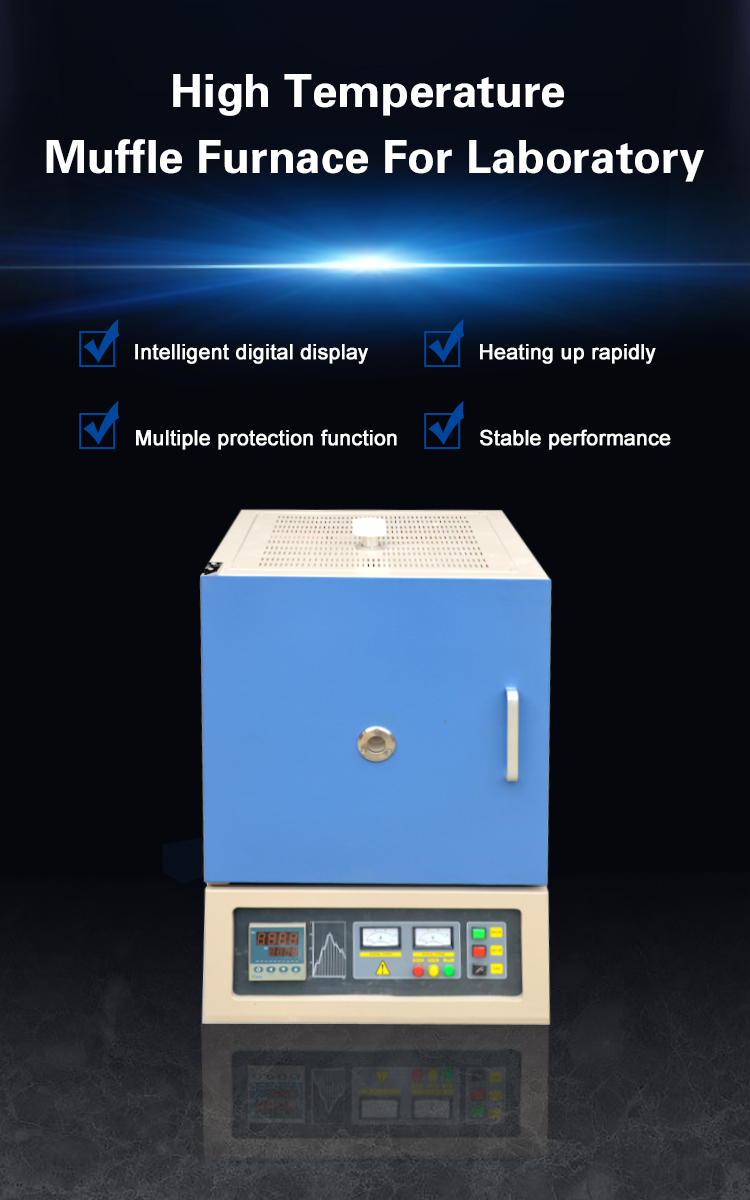

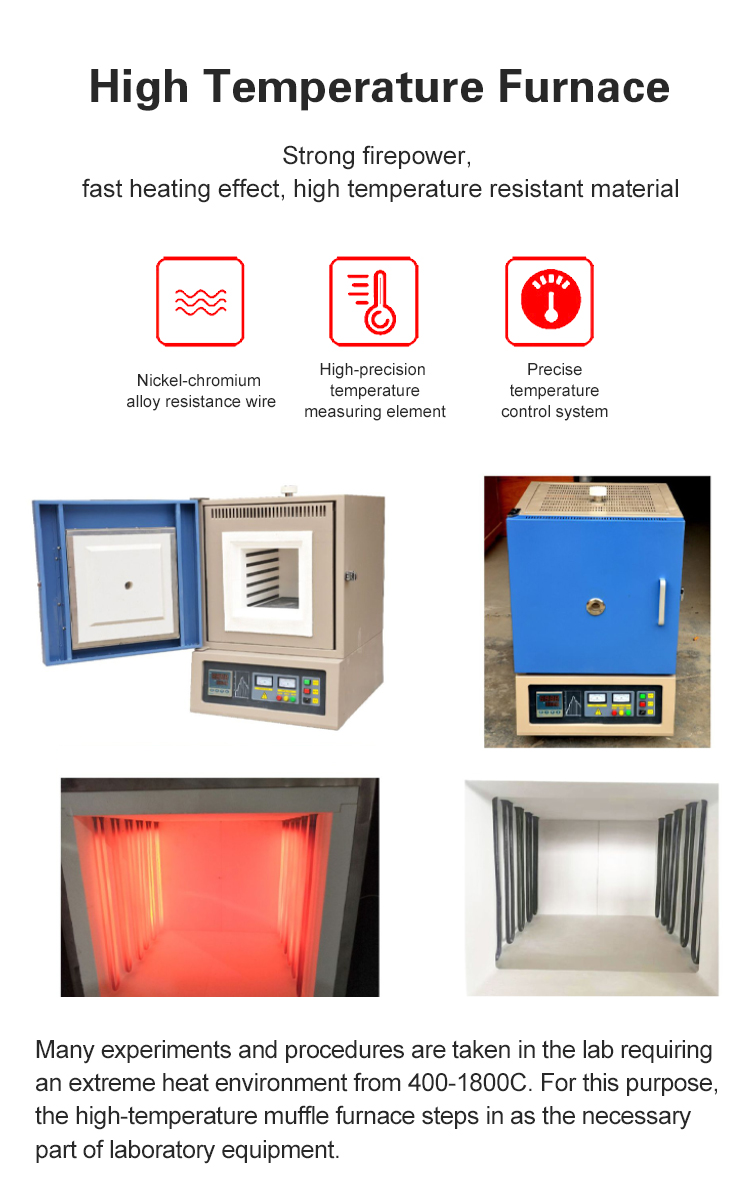

Muffle Furnace

It integrates the control system and furnace, with compact and beautiful structure. The furnace lining adopts high-purity alumina ceramic fiber board, which has good heat preservation effect, light weight and small space. The furnace shell adopts double-layer air-cooled structure to ensure that the surface temperature of the furnace shell is close to the room temperature. The temperature control system adopts industrial precision level 0.2 intelligent instrument, PID control and 51 section programmable automatic control. This series of muffle furnaces are used in colleges and universities, scientific research institutes and laboratories. They are ideal scientific equipment for sintering, melting, analysis and development of metal, non-metal, and other compound materials.

Furnace Chamber Size

100*100*100

120*120*130

150*150*150

200*200*200

200*200*300

250*250*300

300*300*300

300*300*400

350*350*500

400*400*400

450*450*450

500*500*500

600*600*600

800*800*800

900*900*900

Heating components

1. MF-1200M Feature: Resistance wire heater, maximum temperature 1200 degrees centigrade

Working temperature ≤ 1200 ℃

Heating element: Fe-Cr-Al-Mo wire

Features: compared with ordinary iron chromium aluminum resistance wire, the temperature is higher and more durable.

2. MF-1400M Feature: SiC heater, maximum temperature 1400 degrees centigrade

Working temperature ≤ 1400 ℃

Heating element: SiC heater

Features: high temperature, corrosion resistance, long service life, small deformation and convenient installation and maintenance.

3. MF-170M Feature: MoSi2 heater, maximum temperature 1700 and 1800 degrees centigrade

Working temperature ≤ 1750 ℃

Heating element: MoSi2 heater

Features: suitable for ultra-high temperature heating, long service life, high calorific value and economic
