Pem Electrolyzer for Generator Sealed Electrolyzer Straight Electrolytic Cell Hydrogen Electrolyser

Pem electrolyzer for generator sealed electrolyzer straight electrolytic cell hydrogen electrolyser

Product Description

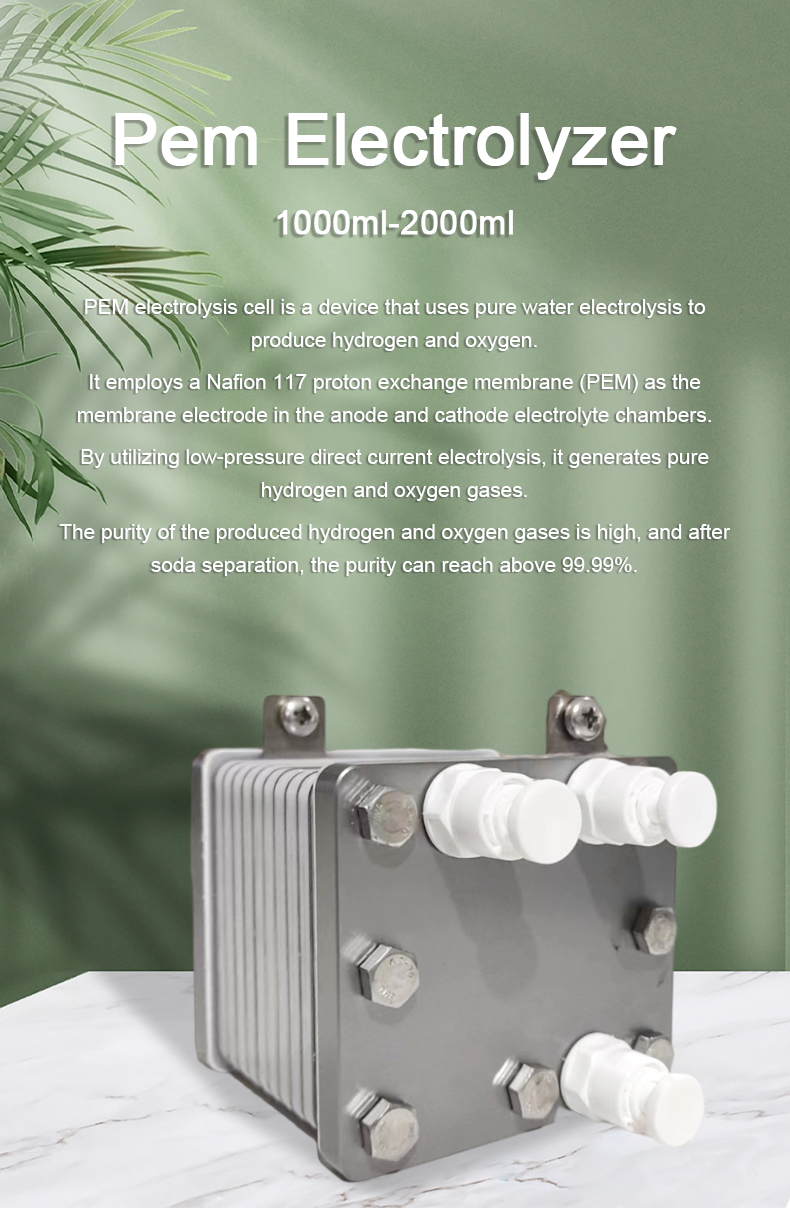

PEM electrolysis cell is a device that uses pure water electrolysis to produce hydrogen and oxygen. It employs a Nafion 117 proton exchange membrane (PEM) as the membrane electrode in the anode and cathode electrolyte chambers. By utilizing low-pressure direct current electrolysis, it generates pure hydrogen and oxygen gases. The purity of the produced hydrogen and oxygen gases is high, and after soda separation, the purity can reach above 99.99%.

Product Features

1. Excellent long-term pressure resistance, capable of operating at 0.6Mpa pressure for 24 hours;

2. It can operate without the need for ion exchange resin, but requires a circulation pump and the use of Yibao purified water;

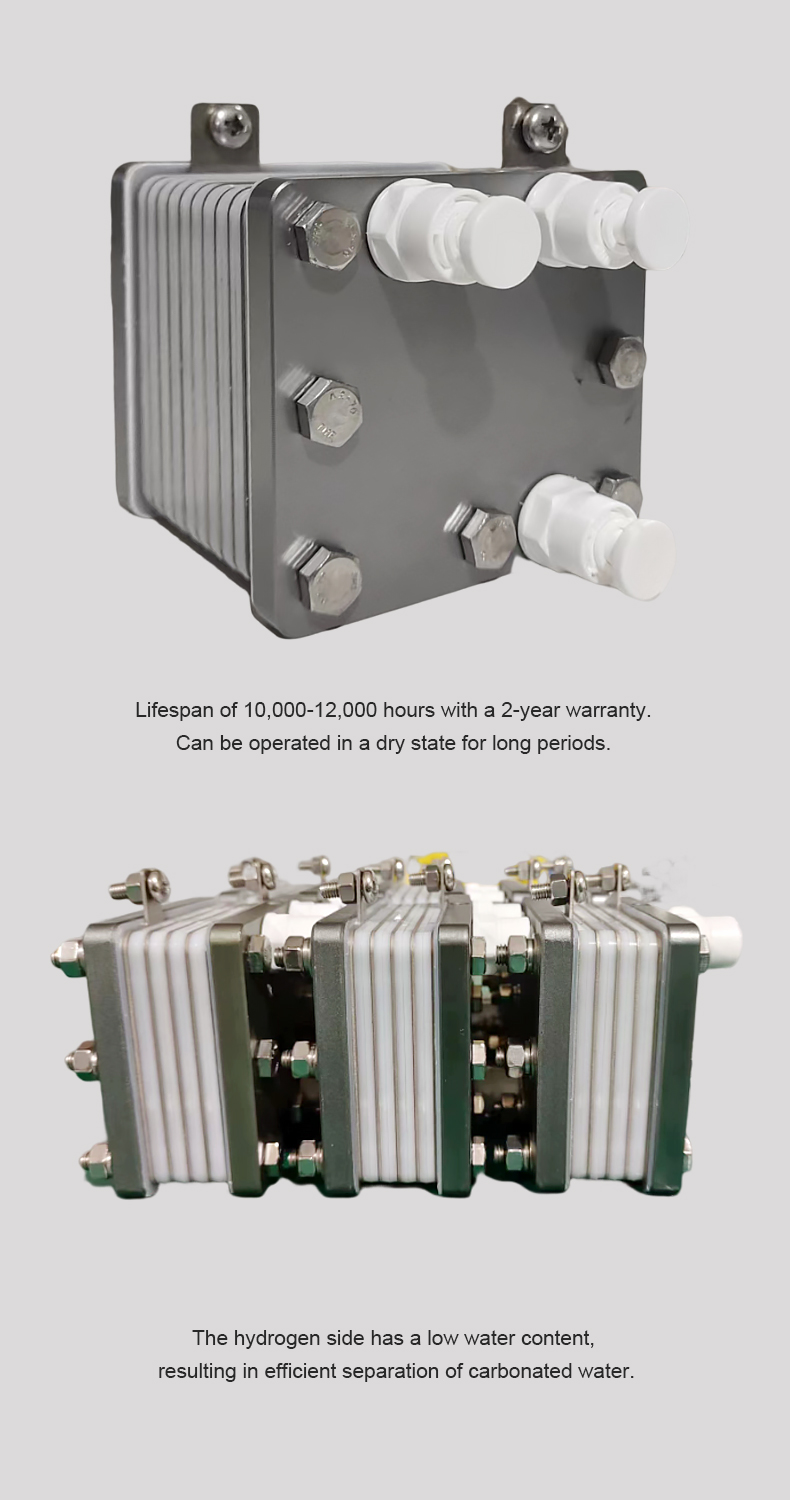

3. Lifespan of 10,000-12,000 hours with a 2-year warranty;

4. Capable of long-term dry operation;

5. Low water content on the hydrogen side, achieving effective separation of carbonated water.
