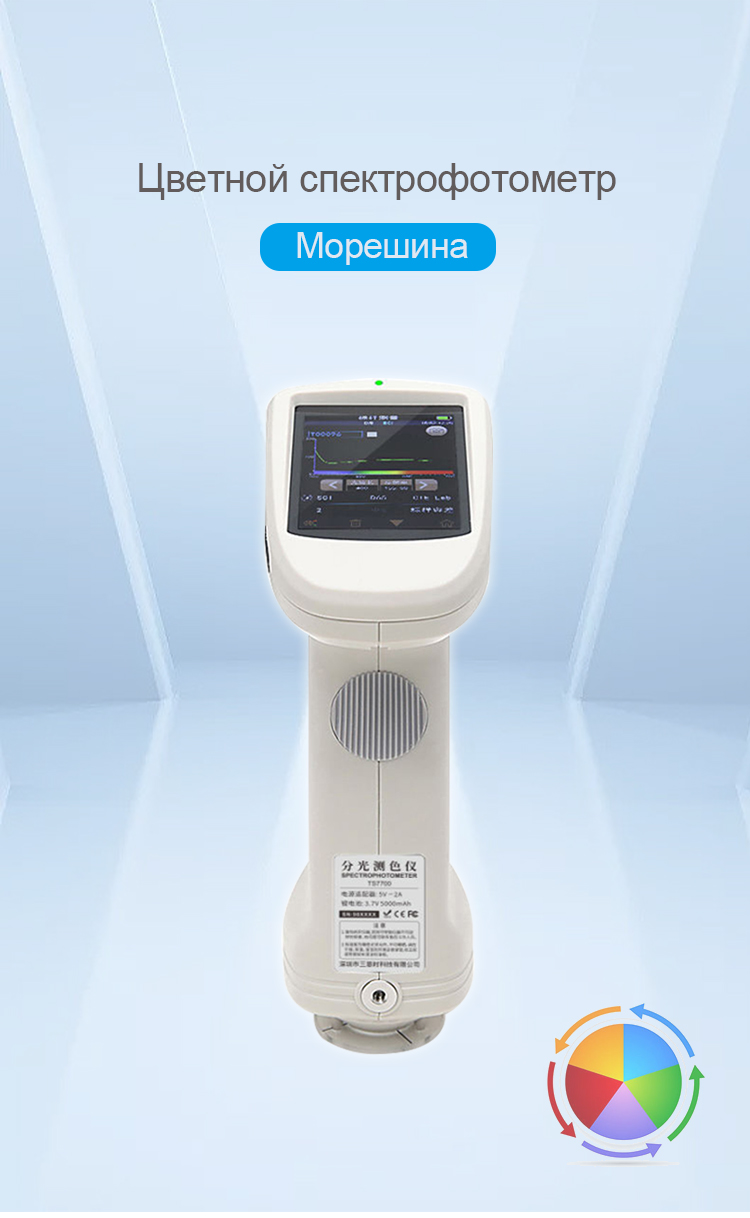

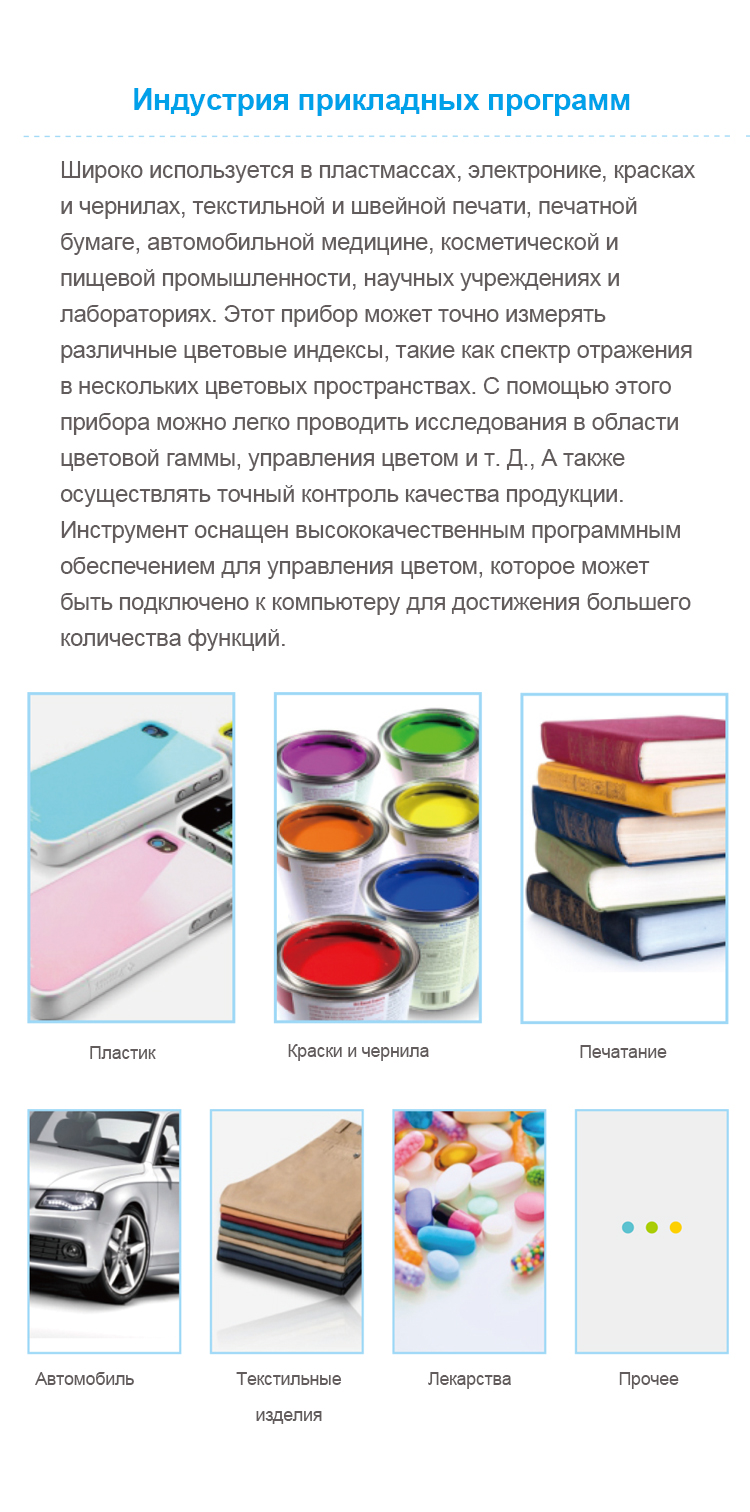

The TS7600 portable spectrophotometer is a high-precision color measurement instrument used to measure and control surface color, widely used in various industries such as plastics and metals, paints and coatings, furniture and wood, ink, printing and packaging, pharmaceuticals, cosmetics, textiles, textiles, clothing, etc. Electronic, ceramic tile, and decorative products.TS7600 spectrophotometer is a leading measurement instrument designed specifically for performance and reliability, aimed at accurately evaluating the color and appearance of opaque and fluorescent samples. This high-precision universal spectrophotometer is used for evaluating, reproducing, and controlling the color and appearance of samples, providing a more effective and orderly process. Its advanced features and indomitable performance enable users to more effectively establish and coordinate color quality standards, maintain consistency in each batch of materials, and help seamlessly communicate with colors within and throughout the supply chain. This makes TS7600 very suitable for color analysis, formulation, and quality control in laboratory and production environments.

In summary, the TS7600 color spectrophotometer is very suitable for any place that requires color control or color control.

Product Features

1. D/8 geometric optical structure, conforming to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO 7724/1,ASTM e1164,din5033teil7;

2. Adopt combined LED light source with high life and low power consumption;

3. Customized one 8mm or 4mm aperture (the flat/tip measuring aperture can be switched easily,which is suitable for more tested sample)

4. Dual optical path system,the optical resolution in the visible range is less than 10nm,which can measure the SCI and SCE spectrum of the sample at the sameSB time;

5. Accurate specture and lab data, used for color marching and accurate color transmission;

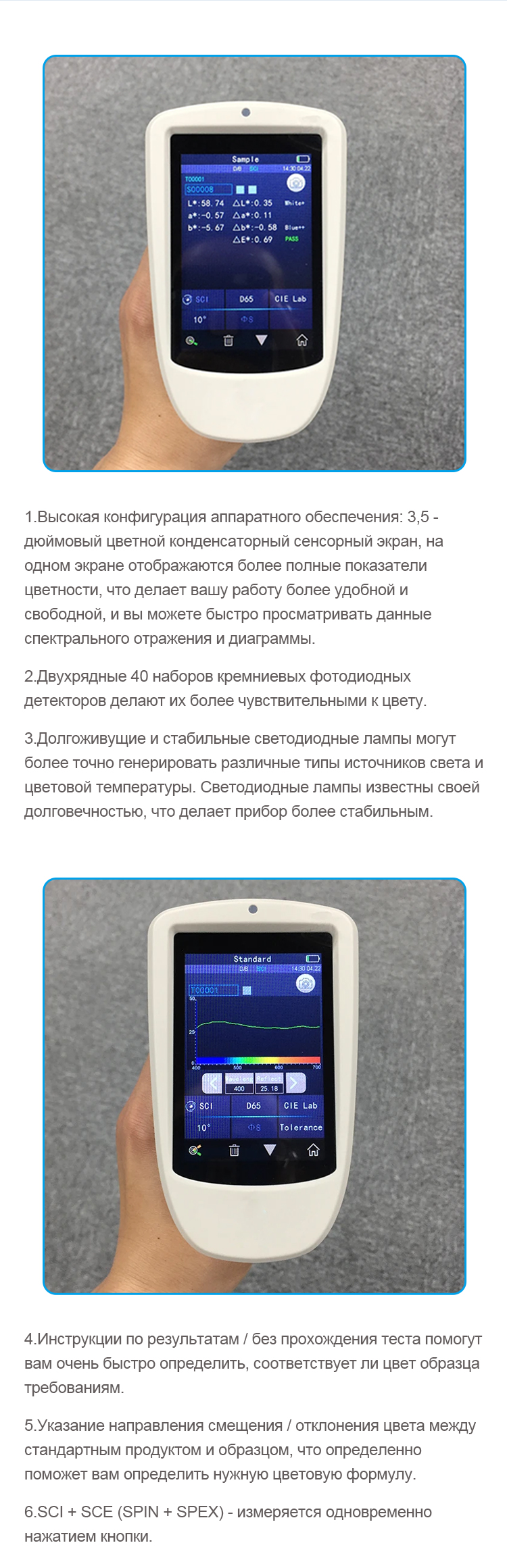

6. High hardware configuration:3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area,etc.

7. USB interface, convenient for expansion of various function;

8. Super dirt resistant and stable standard white calibration board;

9. Large capacity storage space, which can store more than 20000 pieces of test data;

10. 2/10 standard observer's angle, multiple light source modes, multiple surface color system, meet various standards of chromaticity indicators, and the needs of various customers for color measurement;

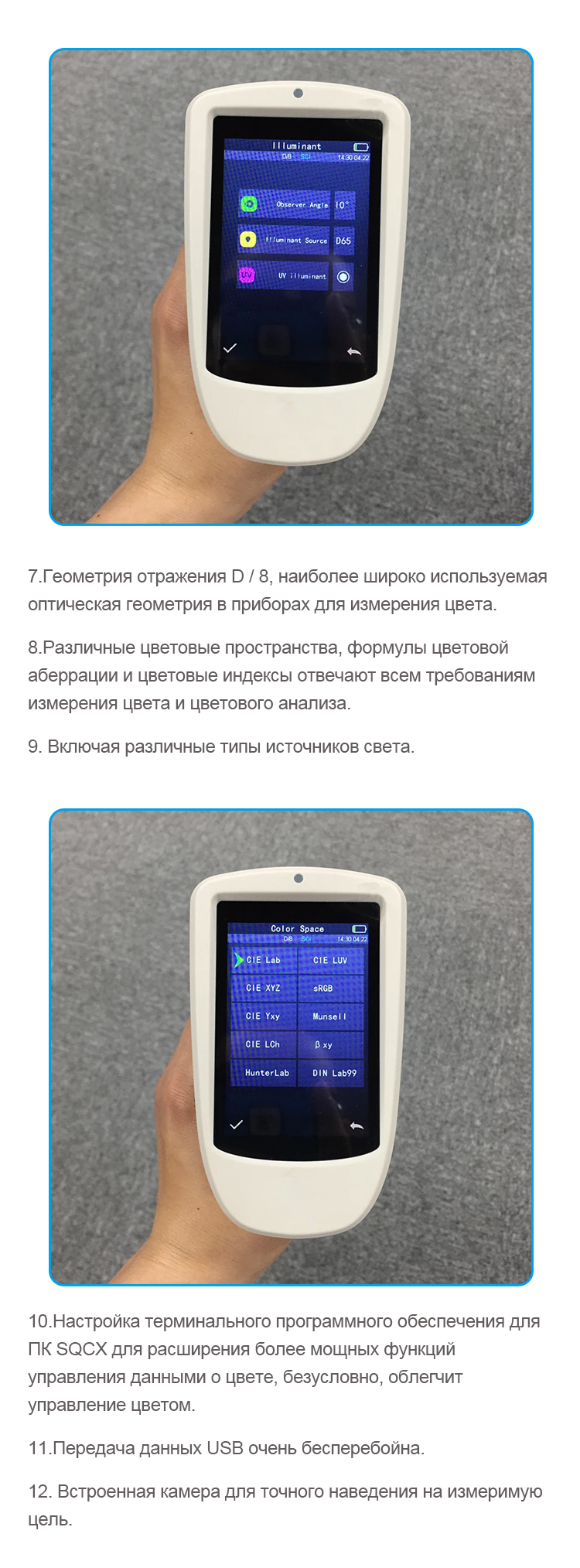

11. Camera locating position and stabilizer cross measurement position;

12. PC software has powerful function expansion.
