Moreshine Freeze Dryer Machine Home Or Lab Vacuum Drying Equipment for Fruit

Beachtop OKLG-10 Scientific Pharmaceutical Small Mini Vacuum Laboratory Freeze Dryer

Особенности продукции

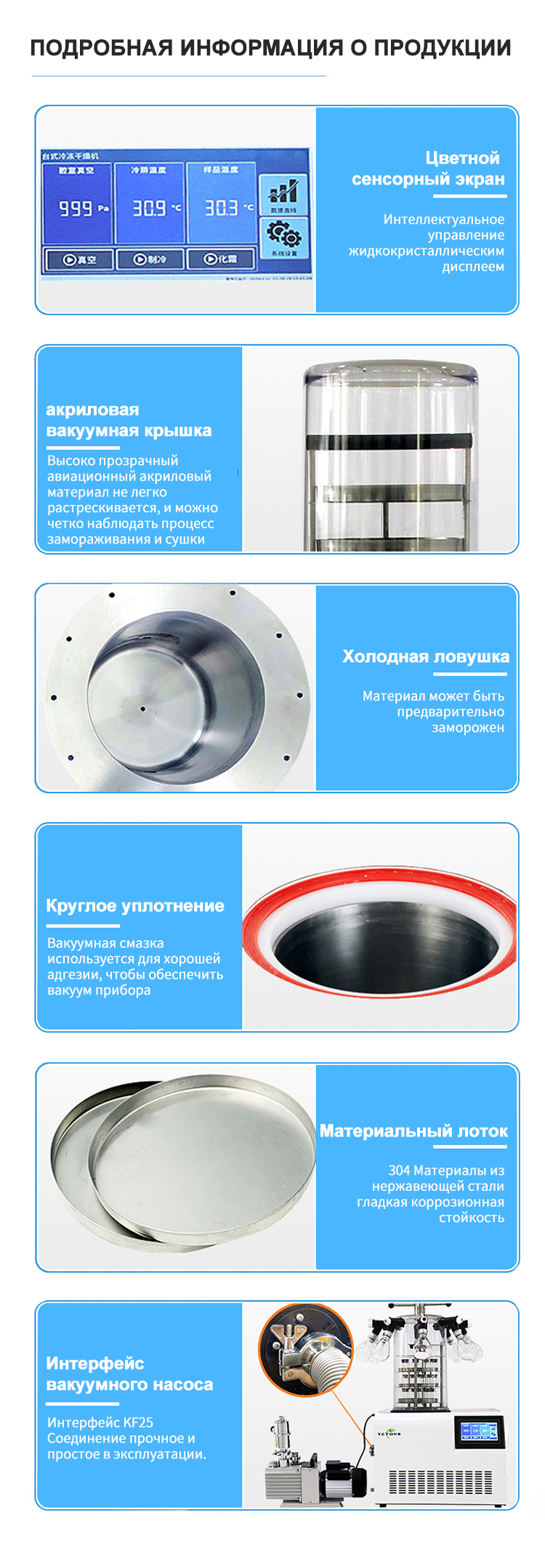

1. Интеллектуальное управление микрокомпьютером с жидкокристаллическим дисплеем

2. Акриловый вакуумный колпак

3.Высокопрозрачные авиационные акриловые материалы не легко растрескиваются, и процесс замораживания и сушки материала можно четко наблюдать

4.Использование вакуумной смазки, хорошая адгезия, чтобы обеспечить вакуум прибора

详情_06

详情_02 详情_01 详情_03 详情_05 详情_04

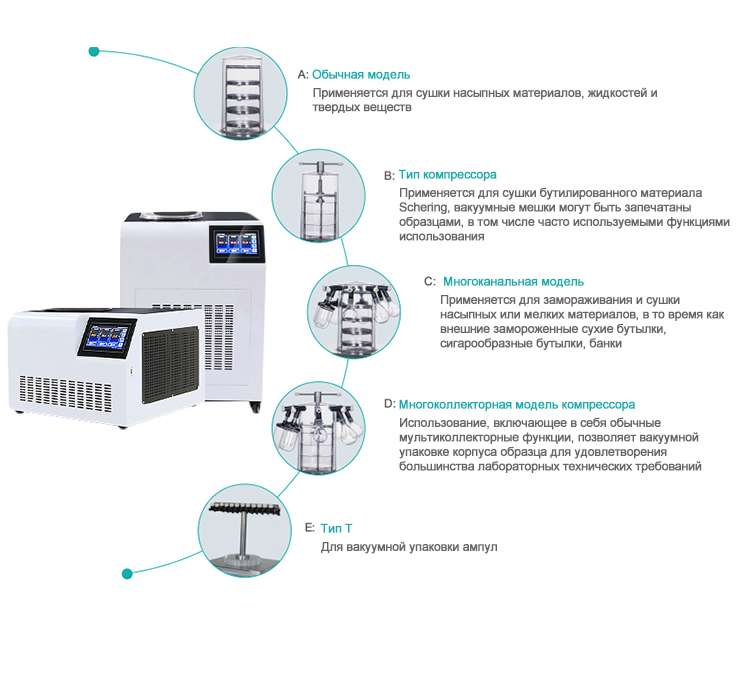

Model	OKLG-10A	OKLG-10B	OKLG-10C	OKLG-10D	OKLG-10E
Specification	Standard	Manual gland type	Multi-manifold type	Multi-manifold gland type	T-frame type
Freeze-dried area	0.12m2	0.08m2	0.12m2	0.08m2	/
cold trap temperature	-60°C
Water catch KG/batch	4
Standard vacuum	≤5Pa (no load)
Ultimate vacuum	2PA
Material tray	200mm total 4 layers	180mm total 3 layers	200mm total 4 layers	180mm total 3 layers	Configure 24 drying bottle ports
Total power	Host 680Ww ((standard 37OW vacuum pump)
Host weight	70kg
Dimensions	600x558x390mm
power supply	AC220V 5OHz
Applicable environment	Ambient temperature≤30°C
Machine running noise	≤55dB
Standard	1 vacuum pump, 2 KF25 clamps, 1 KF vacuum hose

Model	OKLG-10A	OKLG-10B	OKLG-10C	OKLG-10D	OKLG-10E
Specification	Standard	Manual gland type	Multi-manifold type	Multi-manifold gland type	T-frame type
Freeze-dried area	0.12m2	0.08m2	0.12m2	0.08m2	/
cold trap temperature	-60°C
Water catch KG/batch	4
Standard vacuum	≤5Pa (no load)
Ultimate vacuum	2PA
Material tray	200mm total 4 layers	180mm total 3 layers	200mm total 4 layers	180mm total 3 layers	Configure 24 drying bottle ports
Total power	Host 680Ww ((standard 37OW vacuum pump)
Host weight	70kg
Dimensions	600x558x390mm
power supply	AC220V 5OHz
Applicable environment	Ambient temperature≤30°C
Machine running noise	≤55dB
Standard	1 vacuum pump, 2 KF25 clamps, 1 KF vacuum hose
