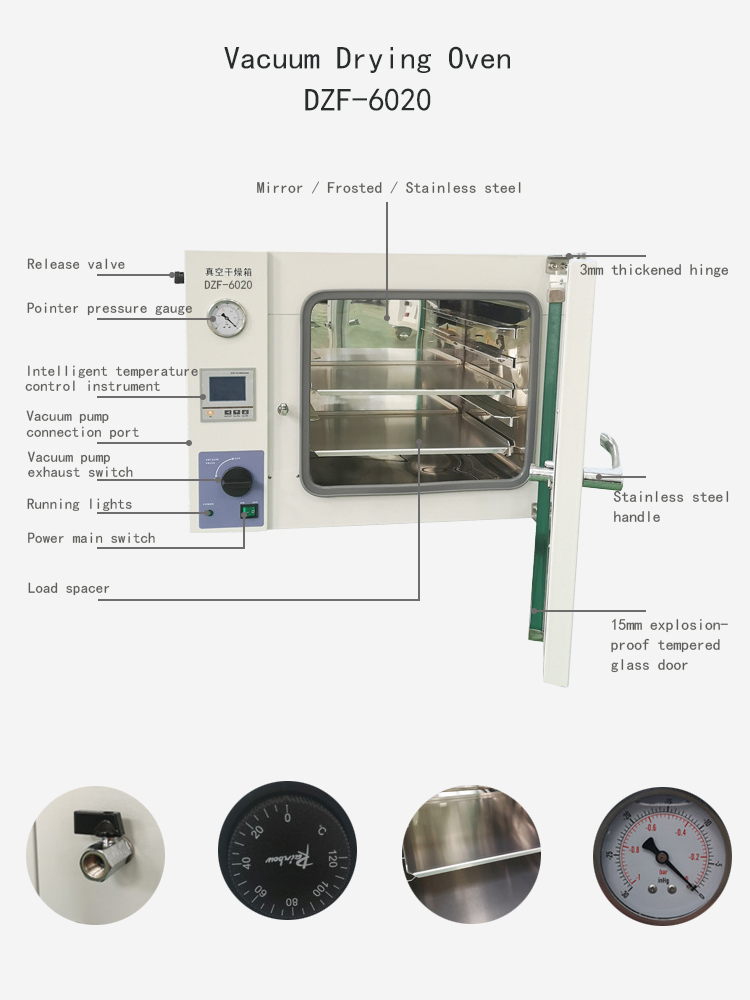

Vacuum Drying Oven

  • DZF-6020

  • 220V/50HZ

  • 500W

  • 580*450*450mm

  • RT+10~250℃

Availability:
Quantity:

Factory Supply Attractive Price Presician Industrial Laboratory Vacuum Drying Oven


Product Description

The products produced by imported laser and numerical control processing equipment are used by enterprises, laboratories and scientific research institutions for drying, baking, wax melting, sterilization and defoaming,etc.

This vacuum drying oven adds vacuum conditions on the basis of high-temperature drying, which greatly reduces the boiling point and steam pressure, provides a dust-free, vortex free drying process and a mild environment for the test and heating process, and makes the solvent steam easy to collect, discharge or reuse. In addition, the storage, heating, testing and drying are carried out in an environment without oxygen or filled with inert gas, so the test samples are not easy to be oxidized.

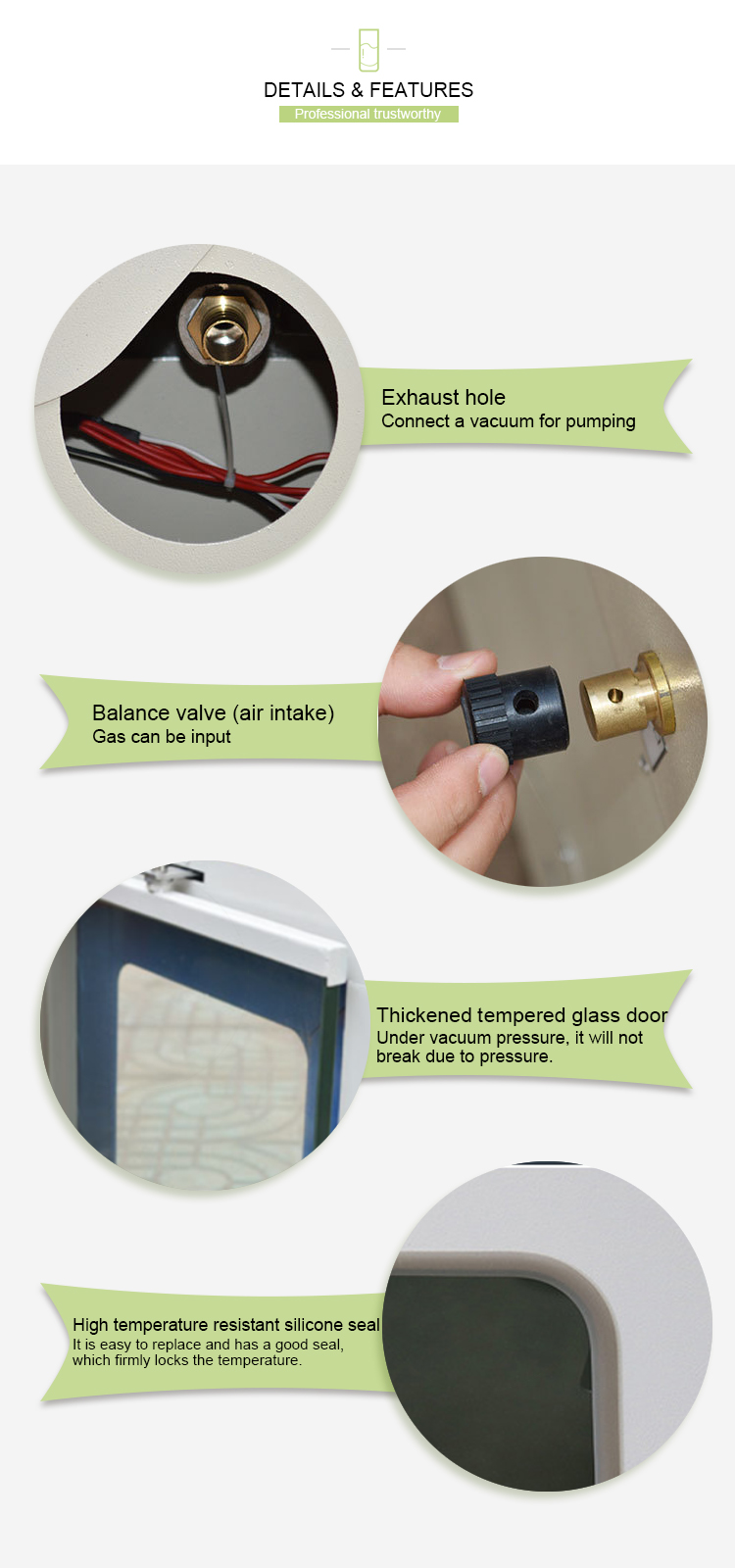

Product Features

  1. The cuboid studio uses the effective volume to reach.

  2. Double-layer tempered glass door makes the objects in the observation studio clear at a glance.

  3. Effective sealing of high temperature resistant silicone rubber door seal formed by one-time casting.

  4. Lock type elastic adjustment door lock to ensure good vacuum degree.

  5. The studio adopts stainless steel plate.

    1

    3

ModelDZF-6020DZF-6050DZF-6090

DZF-6090

Antiseptic liner

DZF-6210DZF-6250

DZF-6020DDZF-6050DDZF-6090D
DZF-6210D
Voltage220V/50HZ380V/50HZ
Input Power500W1400W1600W1500W2100W3000W
Temperature Control RangeRT+10~250℃
Temperature Resolution0.1℃
Temperature Fluctuation±1℃
Ambient Temperature+5~40℃
Degree Of Vacuum≤133pa(-0.1MPa)
Liner Size(mm)300*300*275415*370*345450*450*450450*450*450560*640*600700*600*600
Dimensions580*450*450720*525*535615*590*1470615*590*635720*820*17501050*760*910
Separator1 block2 block2 block2 block3 block3 block
Liner MaterialThe inner tank is stainless steel and the outer shell is sprayed with cold-rolled plate
RemarkD type is a digital display automatic vacuum degree control system, the control range: 99.99KPa-0., the vacuum degree can be controlled by the program, and the cycle period can be set arbitrarily. The valve is controlled by inert gas, and the vacuum degree is automatically released when the timer ends.


4
